How an Air Operated Double Diaphragm Pump Works

 Air Operated Double Diaphragm Pumps otherwise called AODD Pumps are utilized in a wide scope of uses in different Industries. By plan AODD Pumps discover use in moving strong loaded fluids, exceptionally thick fluids separated from a wide scope of others.


AODD Pump


Air Operated Double Diaphragm Pump utilize packed air to work and are a sort of sure uprooting siphon. During activity, compacted air is moved by a shaft starting with one chamber then onto the next. The connected shaft permits the chambers to move at the same time. This movement powers fluid out of one chamber to the release line while the other chamber is being loaded up with fluid at the same time. They use responding elastomeric stomachs to siphon the liquid. A typical bay and basic outlet are available in the siphon.

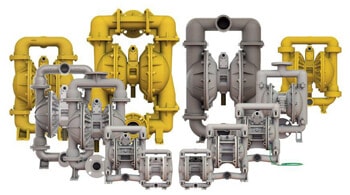

Air operator double diaphragm pump

Air Operated Double Diaphragm Pump Mechanisms

Air Operator Double Diaphragm Pump is a sort of sure relocation siphon yet what separates it, is that it utilizes packed air to work. In a forthcoming blog entry we'll discuss the upsides of utilizing an air worked twofold stomach siphon (AODD), yet today, we should close with a fast outline of this kind of siphon control instrument.

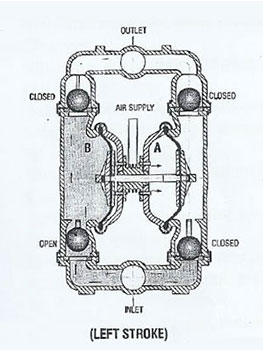

At the point when you interface packed air to an AODD Pump Dealers, it goes into an air engine which guides the air to push a stomach, 'pushing the fluid out'. The stomach which gets pushed is associated with a shaft which will pull the opposite stomach making a depression on the opposite side, 'attracting the fluid'.


At the base and top of the two pits, there are one way valves, regularly a ball valve or a fold valve. So when a depression is shut it pushes the fluid up and out while on the opposite side, it opens a cavity sucking in the fluid. This will at that point substitute back shutting the depression on the opposite side and opening the other. This would all be able to occur up to 400 cycles each moment.


air operated double diaphragm pump

Is an Air Operated Double Diaphragm Pump Right for You?

In the coming weeks, we'll investigate the choices an Peristaltic Hose Pump Manufacturers gives you and your business, just as whether it's an ideal choice for your needs. Up to that point, reach us today and one of our accomplished experts will be glad to address any of your inquiries.
